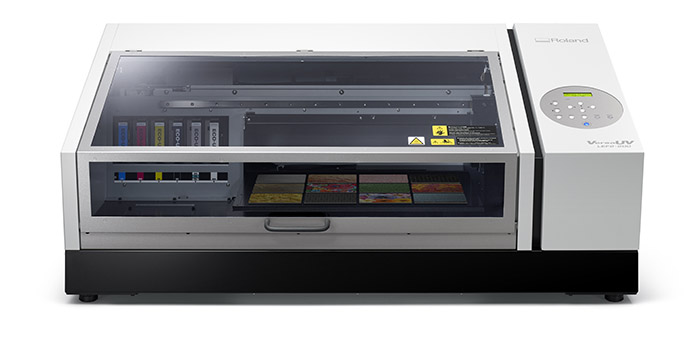

VersaUV LEF2-200 at a glance:

Ideal for on-demand print customization of one or multiple items
Print directly on materials up to 3.94-inches thick, including leather and fabric, ceramics, canvas art, etc.

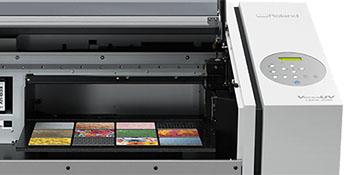

Easy positioning fixture, start timer function, head refresher and other new features to streamline your print process
ECO-UV ink in CMYK plus Gloss and White for unique finishes and ink effects

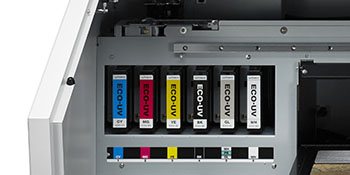

Advanced UV Ink

Produce stunning graphics with CMYK, White and Gloss ECO-UV® inks
White ink acts as a brilliant spot color, or to ensure that colors pop on dark or clear substrates
Optional Primer increases efficiency by prepping the surface of materials like acrylic and plastic for full-color customization*
An Automated Ink Circulation System prevents ink pigments settling in the ink lines for smooth consistency and density
Mist Filters catch the residual ink that mists off the edge of your media to prevent overspray and to keep ink from settling on internal components

Energy Efficient UV Lamps

The LEF2-200 features energy-saving LED lamps that last up to ten times longer than conventional UV lamps. These can be instantly switched on and off for a true on-demand operation that doesn’t require a long warm-up time. In addition, the LEF has an automatic low-power mode that is switched on when not used after an extended period..

Mist filters for clean & clear printing

To ensure optimum print quality when printing around curves, mist filters have been added to the LEF-12i to collect the residual ink-mist when printing off the edge or curve of an item. This reduces overspray and stops ink from settling on internal parts. Filters are designed to be easily replaceable by the end user.

Orange and Green options for added vibrancy and color accuracy

Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.

Expand your Color Gamut with "True Rich Color 2"

Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.

Model		LEF2-200
Printing method		Piezo ink-jet method
Attachable objects to be printed on	Width	Max. 21.2 in. (538 mm)
	Length	Max. 14.2 in. (360 mm)
	Thickness	Max. 3.94 in. (100 mm)
	Weight	Max. 11 lb. (5kg)
Maximum printing width / printing length		Max. 20 (width) × 13 (length) in. (508 (width) × 330 (length) mm)
Ink	Type	ECO-UV (EUV, EUV4) 220 ml cartridge
Ink	Colors	Five colors (cyan, magenta, yellow, black, and white) Five colors (cyan, magenta, yellow, black, and white) and primer Six colors (cyan, magenta, yellow, black, white, and gloss)
Ink-curing unit		Built-in UV-LED lamp
Print resolution (dots per inch)		Max. 1440 dpi
Distance accuracy*		Error of less than ±0.3% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater.
Connectivity		Ethernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving function		Automatic sleep feature
Power requirements		AC 100 to 240 V ± 10%, 1.8 A, 50/60 Hz
Power consumption	During operation	Approx. 149 W
Power consumption	Sleep mode	Approx. 13 W
Acoustic noise level	During operation	60 dB (A) or less
Acoustic noise level	During standby	49 dB (A) or less
Outer dimensions		47.3 [W] × 37.9 [D] × 21.6 [H] in. (1,202 (W) × 962 (D) × 549 (H) mm)
Weight		242.5 lb. (110 kg)
Environment	During operation	Temperature: 68 to 89.6°F (20 to 32°C) (71.6°F (22°C) or higher recommended), Humidity: 35 to 80% RH (no condensation)
Environment	Not operating	Temperature: 41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation)
Included items		Power cord, software RIP, cleaning liquid, drain bottle, manuals, etc.
