Decades after revolutionizing the sign and graphics business with leading-edge vinyl cutting machines, Roland is still leading the industry with technology that offers the fastest and most precise contour cutting devices that deliver crisp, eye-catching results. Create vehicle graphics, stickers, labels, apparel and more.
GS-24 for Apparel
GS-24 for Signs & Decals
GS-24 for Specialty Graphics

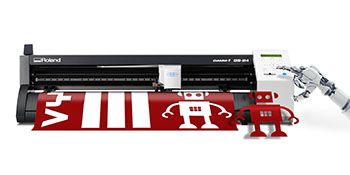

Cut dense material from 2” to 27.5” wide. Cut vinyl, paint mask, twill, heat transfers, sandblast material and more to create everything from signs to rhinestone apparel.

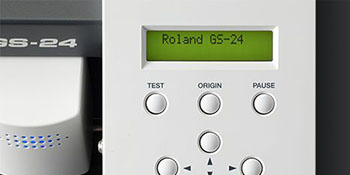

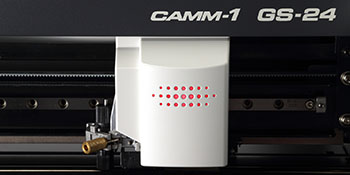

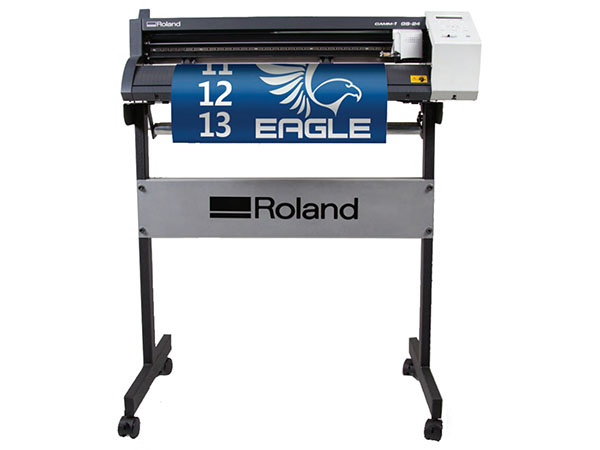

With an intelligently-designed LCD panel, blade groove on its apron for manual cutting, and a stand to comfortably hold rolls, the GS-24 is as easy-to-use as it is advanced. An innovative digital servomotor cuts vinyl and other materials at speeds up to 20-inches per second. At the same time, a curve-smoothing function precisely cuts at speed to optimize productivity and efficiency.

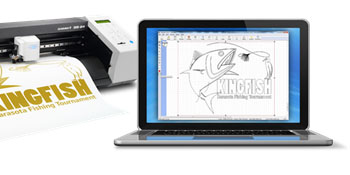

Quickly and easily output cut graphics, including resizing, repositioning, rotating, and mirroring images. The GS-24 also cuts oversized images using an improved tiling function, and cuts true type fonts without the need for outlining. CutStudio supports many different file formats, and can cut directly from Adobe Illustrator or Corel Draw.
| Model | GS-24 |
| Driving method | Digital control servo motor |
| Cutting method | Media-moving method |
| Loadable material width | 2 to 27-1/2 in. (50 to 700 mm) |
| Maximum cutting area | Width: 22.9 in (584 mm) Length: 984.25 in (25000 mm) |
| Acceptable tool | Special blade for CAMM-1 series |
| Maximum cutting speed | 19.69 in/s (500 mm/s) (all directions) |
| Maximum cutting media thickness | Up to .04 in (1 mm) |
| Cutting speed | .4 in to 19.69 in/s (10 to 500 mm/sec) (all directions) |
| Blade force | 30 - 350 gf |
| Mechanical resolution | 0.000492 in./step (0.0125 mm/step) |
| Software resolution | 0.000984 in./step (0.025 mm/step) |
| Distance accuracy(1) | Error of less than ±0.2 % of distance traveled, or ±0.1 mm, whichever is greater |
| Repetition accuracy (1)(2) | ±0.1 mm or less |
| Alignment accuracy for printing and cutting when loading printed material (1) (3) | ±1 mm or less for movement distance of 210 mm or less in material-feed direction and movement distance of 170 mm or less in width direction (Excluding effects of printer and/or material) |
| Interface | USB interface (compliant with Universal Serial Bus Specification Revision 2.0 Full Speed, Connecting Multiple Units) |
| Re-plot memory | 2MB |
| Instruction system | CAMM-GL III |
| Power supply | Dedicated AC adapter |
| Input: | AC 100 to 240 V ±10 % 50/60 Hz 1.7 A |
| Output: | DC 24 V, 2.8 A |
| Power consumption | Approx. 30 W (including AC adapter) |
| Acoustic noise level during operation | 70 dB (A) or less (according to ISO 7779) |
| Acoustic noise level during standby | 40 dB (A) or less (according to ISO 7779) |
| Dimensions |
33.5 in (W) × 12.2 (D) × 9.17 (H) With stand 33.5 in (W) X 12.2 (D) X 40.75 (H) |
| Weight |
29.77 lbs. [13.5 kg] With stand 58 lb. [26 kg] |
| Packaging size | 38 (W) x 17.7 (D) x 15.3 (H) in. [975 (W) x 450 (D) x 390 (H) mm] |
| Packaging weight | 39.7 lb. (18 kg) |
| Environment | Temperature: 5 to 40°C (41 to 104°F), humidity: 35 to 80 % (no condensation) |
| Included items | AC adapter, power cord, blade, blade holder, roller base, alignment tool, USB cable, Set Up guide |
