Series 3220 overlaminates are constructed of 2-mil (50 micron) cast vinyl film with clear, permanent pressure-sensitive adhesive. Designed to protect and prolong the life of printed images, Series 3220 extends the life of the graphics by 2 years. Series 3220 is rated for outdoor durability up to 7 years. Series 3220 is a premium cast protective overlaminate available in Gloss, Matte, Luster or Satin finish to help customize the look of your graphic. With UV inhibitors protecting your graphic from weathering and added dimensional stability, you’ll have an easier graphic installation and clean removal at the end.
Protective Overlaminate for SLX Cast Wrap, DPF 6100XLP, DPF 6000XRP, DPF 6000RP White, DPF 6500, DPF 6700, IllumiNITE Wrap™, DPF 2400, DPF 4600LX, DPF 4500GT/MT, DPF 8000™ Ultra Tack, DPF 8200 High Tack, DPF 9000, DPF 4000 and DPF 4300

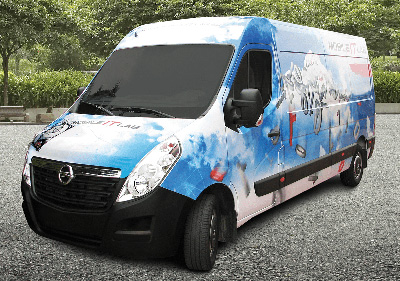

Long-term signage, kiosks, POP displays, fleet and vehicle applications.
Recommended dry time for printed images is 24-48 hours prior to laminating.
Series 3220 Gloss is UL 410 approved for slip resistance for interior floor graphics
UV inhibitors to protect and extend the life of your printed graphic.
Arlon overlaminate film is designed to be laminated cold without any heat.
| Property | Test Methods | Typical Value | |
|---|---|---|---|
| Surface Finish | Gloss Meter 60° Reflection | 80 to 90 Gloss Units (Gloss) 55 to 85 Gloss Units (Luster) 20 to 30 Gloss Units (Satin) 1.5 to 10 Gloss Units (Matte) |
|
| Thickness | Micrometer, Federal Bench Type | 2-mil (50 micron) | |
| Tensile Strength | Tensile Tester with 2-in (51 mm) jaw separation; crosshead speed of 12 in/min, (5.1 mm/s), web direction | ≥ 4.5 lb/in width | ≥ 0.8 kg/cm width |
| Elongation | Instron Tensile Tester as above | ≥ 150% | |
| Shelf Life (In Box) | Ideal storage temperature 21°C and 50% relative humidity | 2 years from factory shipment | |
| Application Temperature Range | On clean image | 40°F to 100°F | 4.4°C to 38°C |
| Service Temperature Range | On clean, dry substrate | -40°F to 175°F | -40°C to 79°C |
| Dimensional Stability | Shrinkage After 158°F (70°C), 48 hours | 5-mil | 0.12 mm |
| Peel Adhesion | PSTC-1, 15 min, 70°F (21°C) | 4.35 lb/in | 0.78 kg/cm |
| Liner Release | TLMI Release at 90°, 300 in/min (760 cm/min) | 70 g/2in | 13.78 g/cm |
