Built to produce unique prints with added style and impact, VersaUV LEC2 series printer/cutters are on another level of machine quality. These all-in-one printing, cutting, and embossing machines were designed for sign and graphics providers who are looking to produce premium, head-turning products for their customers.
LEC2 Introduction
The streamlined VersaUV LEC2 is an affordable UV printer/cutter that offers high-quality print results. Versatile and highly-productive, it does the job of multiple devices by directly printing, cutting, creasing and embossing onto card, film and other materials in one seamless workflow.

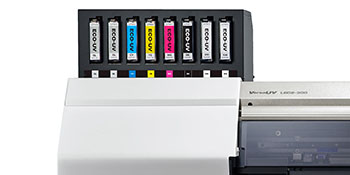

Available in CMYK, White, Gloss, Orange and Red ECO-UV ink offers the following benefits:
Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.
Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.

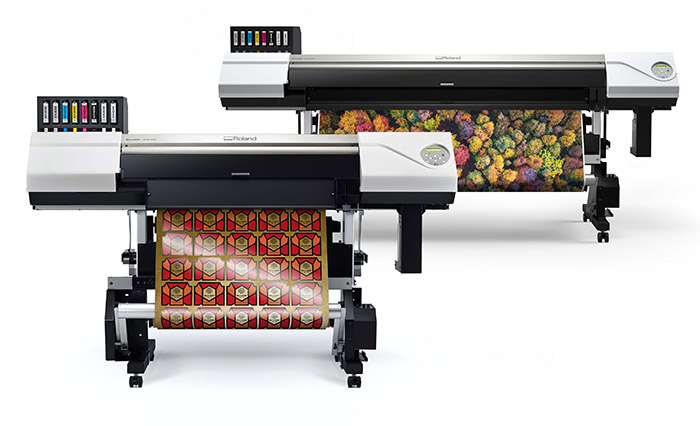

LEC2-640 | LEC2-330 | ||||
---|---|---|---|---|---|

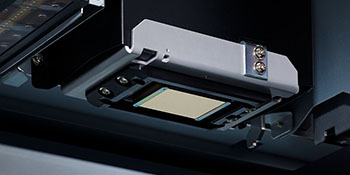

Printing method Piezo | ink-jet method | ||||
Media | Width | 8.3 to 64 in. (210 to 1,625 mm) | 7.2 to 30 in. (182 to 762 mm) | ||
Thickness | 39 mil (Max. 1.0 mm) with liner, for printing 16 mil (Max. 0.4 mm) with liner and 9 mil (0.22 mm) without liner, for cutting |
||||
Roll outer diameter | 8.3 in. (Max. 210 mm) | ||||
Roll weight | 88.2 lb. (Max. 40 kg) | 55 lb. (Max. 25 kg) | |||
Core diameter (*1) | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||||
Printing/cutting width (*2) | Max. 63 in. (1,600 mm) | Maximum 29 in. (736 mm) | |||
Ink | Type | ECO-UV (EUV5) 220 ml cartridge (white) ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, gloss, orange, red, and primer) |
|||
Colors | Eight colors (cyan, magenta, yellow, black, white, gloss, orange, red, and primer) Six colors (cyan, magenta, yellow, black, white x 2, and gloss and primer) Six colors (cyan, magenta, yellow, black, white x 2, and gloss x 2) Four colors (cyan x 2, magenta x 2, yellow x 2, and black x 2) |
||||
Ink-curing unit | Built-in UV-LED lamps | ||||
Printing resolution (dots per inch) | Max. 1,440 dpi | ||||
Cutting speed | 0.4 to 11.8 in/s (10 to 300 mm/s) | ||||
Blade force (*3) | 30 to 500 gf | ||||
Blade | Type | Roland CAMM-1 series blade | |||
Offset | 0.0 to 59.1 mil (0.000 to 1.500 mm) | ||||
Software resolution (when cutting) | 0.98 mil/step (0.025 mm/step) | ||||
Distance accuracy (when printing) (*4) (*5) | Error of less than ±0.3% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater | ||||
Distance accuracy (when cutting) (*4) | Error of less than ±0.4% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled or ±3.9 mil (±0.1 mm), whichever is greater | ||||
Repeatability (when cutting) (*4) (*6) | ±3.9 mil (±0.1 mm) or less | ||||
Alignment accuracy for printing and cutting (*4) (*7) | ±19.7 mil (±0.5 mm) or less | ||||
Alignment accuracy for printing and cutting when reloading media (*4) (*8) | Error of less than ±0.5% of distance traveled, or ±0.2 in. (±3 mm), whichever is greater | ||||
Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||
Power-saving function | Automatic sleep feature | ||||
Power requirements | AC 100 to 240 V±10%, 3.2 A, 50/60 Hz | AC 100 to 240 V±10%, 3.0 A, 50/60 Hz | |||
Power consumption | During operation | Approx. 290 W | |||
Sleep mode | 40 W | ||||
Acoustic noise level | During operation | 63 dB (A) or less | |||
During standby | 53 dB (A) or less | ||||
Dimensions (with stand) | 111 [W] × 31 [D] × 52 [H] in. (2,819 (W) × 781 (D) × 1,316 (H) mm) | 77 [W] × 31 [D] × 52 [H] in. (1,945 (W) × 781 (D) × 1,316 (H) mm) | |||
Weight (with stand) | 359.3 lb. (163 kg) | 275.6 lb. (125 kg) | |||
Environment | During operation (*9) | Temperature: 59 to 90°F (15 to 32°C), humidity: 20 to 80%RH (no condensation) | |||
Not operating | Temperature: 41 to 104°F (5 to 40°C), humidity: 20 to 80%RH (no condensation) | ||||
Media Take-up | TU4 take-up unit included | ||||
Included items | Dedicated stand, power cord, blade, blade holder, media clamps, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User’s Manual, etc. |
