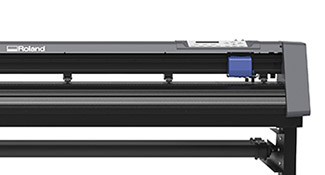

Now is the time to grow your business by offering a greater range of products and a faster, more reliable service. The GR2 series of large-format cutting plotters from Roland DG is built to fit seamlessly with your print-then-cut workflow and deliver fast, flawless results from day one.
Developed to meet the needs of print professionals in various industries, the GR2 has the functionality to let you create a wide range of products. For cut-only processes or a smooth print-then-cut workflow, if you need speed and precision, this is an excellent solution for vehicle graphics, signage, labels and custom clothing and more.
Combine the GR2 with an existing large-format printer for an exact and efficient contour cut graphics workflow. It includes Roland CutStudio software and combines easily with other industry-standard software.

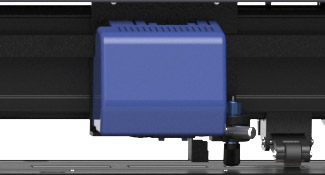

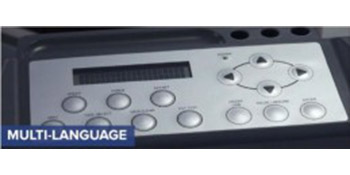

An LCD control panel and other advanced features give users complete control. In addition to smart new pinch rollers and "on-the-fly" pen force adjustment, GR2 cutters enable users to manually adjust blade offset values for added cutting precision, store up to 2MB of preset cutting data, and easily follow the status of each cutting job with a handy LED status light. GR large format cutters also feature an Ethernet port to connect your cutter to a network for a streamlined workflow.
Create contour cut graphics, paint/sandblast stencils, pinstriping and more for cars, trucks, jet skis, and other vehicles. With incredibly powerful cutting features, GR2 cutters handle a huge range of thick and thin media with ultimate precision and ease. It's the ideal machine for both large format boat and airplane graphics, and for quick window tinting and bumper sticker jobs.
| Model | GR2-640 | GR2-540 |
| Mechanism / Driving method |
Media-movement method / Digital control servo motor |
|
| Acceptable media widths | Max. 70.1 in. (1,782 mm) Min. 1.97 in. (156 mm) |
Max. 62.7 in (1,594 mm) Min. 1.97 in. (156 mm) |
| Maximum cutting area | Width: 64 in. (1,627 mm) Length: 1,968 in. (50 m) |
Width: 54 in. (1,372 mm) Length: 984 in. (25 m) |
| Maximum cutting speed | 1.19 to 60 in./s (30 to 1,530 mm/s) |
|
| Maximum cutting media thickness | 1.19 to 60 in./s (30 to 1,530 mm/s) | |
| Cutting force | 5 - 600 gf (in increments of 10 gf) | |
| Mechanical resolution | 0.236 mil./step (0.006 mm/step) | |
| Software resolution | 0.98 mil./step (0.025 mm/step) |
|
| Distance accuracy | Error of less than ±0.1% of distance traveled or 0.254 mm (10 mil.), whichever is greater |
|
| Repetition accuracy *1 *2 | 3.94 mil. (0.1 mm) or less |
|
| Interface | Ethernet 10BASE-T / 100BASE-TX (auto-negotiation), USB 2.0 (full speed), RS232 | |
| Replot Memory | 32MB |
|
| Power supply / Consumption | AC 100 to 240 V ± 10%, 50/60 Hz, Approx. 110 W |
|
| Acoustic noise level | During operation 56 dB (A) or less, During standby 40 dB (A) or less |
|
| Dimensions | 78.1 in. (W) x 30 in. (D) x 44.4 in. (H) 1,982 mm (W) x 756 mm (D) x 1,127 mm (H) |
68 in. (W) x 25.7 in. (D) x 44 in. (H) 1,711 mm (W) x 651 mm (D) x 1,111 mm (H) |
| Weight | 2214 lb. (97 kg) | 133 lb. (60 kg) |
| Packaging dimensions | 87 in. (W) x 15.6 in. (D) x 34.7 in. (H) 2,200 mm (W) x 395 mm (D) x 880 mm (H) |
81 in. (W) x 15.6 in. (D) x 33.5 in. (H) 2,040 mm (W) x 395 mm (D) x 850 mm (H) |
| Packaging weight | 214 lb. (97 kg) | 188 lb. (85 kg) |
| Operating environment |
Temperature: 15 to 30 °c (59 to 86 °F), |
|
| Included items | USB cable, cutting pad, safe blade, dedicated stand, tweezers, user's manual, etc. |
|
