With the launch of the next-generation BN2 Series, Roland DG has elevated a remarkable product to new heights of performance and convenience. The BN2 Series represents the culmination of cutting-edge technology, thoughtful design, and a deep understanding of the needs of both seasoned professionals and ambitious newcomers to the world of print and cut graphics.

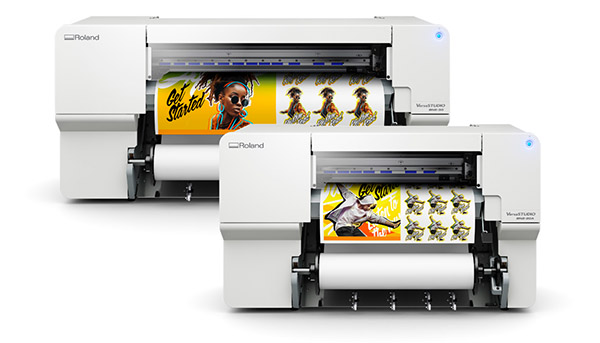

The BN2 Series redefines what's possible in a compact printing and cutting solution. Building upon the success of its predecessor, these compact powerhouses boast a range
of enhancements that cater to your efficiency, creativity, and space-saving requirements. Imagine achieving professional-grade results right in the comfort of your home,
office, or shop -- BN2 makes it possible.
BN2-20 Introduction
As little as $330 more

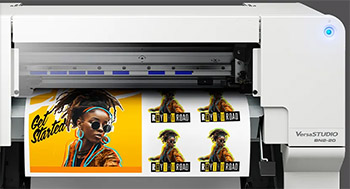

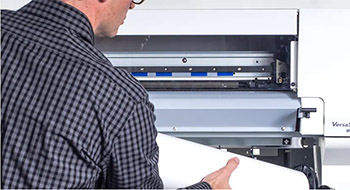

The BN2-20 and BN2-20A incorporate innovative design and user features that make these powerful desktop devices incredibly simple to operate. With a BN2, even those with little or no printing experience can quickly begin producing professional-quality graphics with ease and precision.
BN2 series devices use the same high-definition printheads and inks found in printers used by professionals in graphic production. Not only do these devices offer excellent color reproduction and photographic quality, they also render small letters and fine lines in great detail. Plus, they support True Rich Color 3, a printing setting that is highly acclaimed by printing professionals.

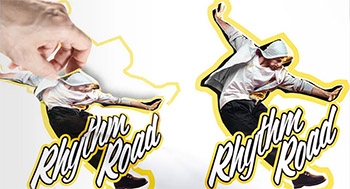

The BN2-20 and BN2-20A incorporate advanced print and cut technology that lets you print and contour cut graphics, even those with complex shapes, in one simple, seamless automated workflow. This integrated print/cut functionality saves you considerable time and effort when
creating graphics for a wide range of applications.
Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.
Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.
| BN2-20A | BN2-20 | ||
|---|---|---|---|
| Printer Method | Piezo ink-jet method | ||
| Media | Width | 5.91 to 20.2 in. (150 to 515 mm) | |
| Thickness | Maximum 1.0 mm (39.3 mil) with liner, for printing Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||
| Roll outer diameter | Maximum 5.9 in. (150 mm) | ||
| Roll weight | Maximum 13.2 lb. (6 kg) | ||
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm ) | ||
| Printing/cutting width (*1) | Maximum 18.89 in. (480 mm) | ||
| Ink | Type | 220-ml cartridge | |
| Colors | Cyan, Magenta, Yellow, Black | Cyan, Magenta, Yellow, Black, White | |
| Printing resolution (dots per inch) | Maximum 1,440 dpi | ||
| Cutting speed | 0.39 to 5.9 in/s (10 to 150 mm/s) | ||
| Blade force (*2) | 30 to 500 gf | ||
| Blade | Type | Roland CAMM-1 series blade | |
| Offset | 0.000 to 1.500 mm (0.0 to 59 mil) | ||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||
| Media heating system (*3) | Print heater set temperature: | 86 to 95 °F (30 to 35 °C) | |
| Dryer set temperature: | 86 to 100.4 °F (30 to 38 °C ) | ||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Rated input | 100-240 Va.c. 50/60 Hz 2.1 A | ||
| Power consumption | During operation | Approx.185 W | |
| Sleep mode | Approx.27W | ||
| Acoustic noise level | During operation | 62 dB (A) or less | |
| During standby | 60 dB (A) or less | ||
| Dimensions (Width x Depth x Height) | 42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm) | ||
| Weight | 137 lb. (62 kg) | ||
| Environment | During operation (*4) | Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80 % RH (no condensation) |
|
| Not operating | Temperature: 41 to 104 °F (5 to 40 °C) Humidity: 20 to 80 % RH (no condensation) |
||
| Included items | Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc. | ||
| *1 | The length of printing or cutting is subject to the limitations of the program. |
| *2 |
|
| *3 |
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached. |
| *4 | Operating environment（Use in an operating environment within this range.) |
|
Unpacking the new BN2-20
