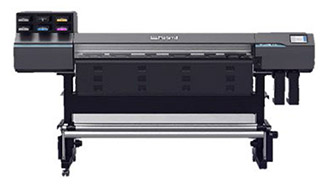

TrueVIS AP-640 at a glance:

Large format printing 64" width
TrueVIS TA Resin Ink 700 ml pouches, including CMYK and Optimizer
UL Greenguard Gold Certification
Dual Piezo staggered print heads to maximize performance
Bluetooth-enabled mobile control panel
Ink dries virtually instantly and can processed immediatly

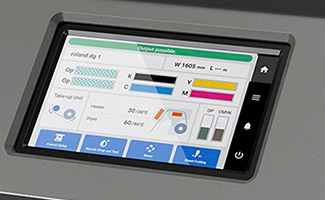

7in Touchscreen Display

The AP-640 includes a 7-inch LCD Touchscreen Control Panel that allows users to intuitively access media setup and
other menu options with ease. Nozzle check and automated calibration features can also be accessed using the touchscreen. Use custom settings for each media with simple access at startup, including all calibration settings and media remaining amount. Easily operate the take-up system from the home screen and get a real-time view on
print heater, external dryer, and job remaining print times

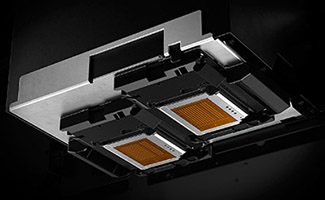

Print Heads

An all new dual piezo printhead design provides a platform for production-level speeds, while maintaining the output
quality needed to be competitive in today’s PSP market. Staggering the optimizer channels to the front of the print carriage helps to balance media stability and print quality without sacrificing throughput. TA Optimizer is jetted first with CMYK printing on top of the optimizer. The optimizer allows each ink droplet to form a fine dot on the media being printed. This method results in amazing color and print quality on a wide variety of media.

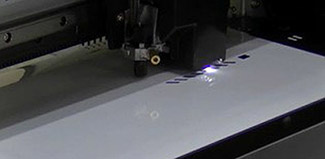

Automatic Media Gap Adjustment

One of the innovative features added into the newly designed control panel is the ability to execute the media gap adjustment (also known as bi-directional and unidirectional adjustments).

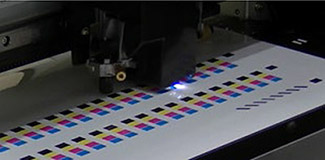

Automatic Media Feed Calibration

In addition, the feed calibration adjustment can be printed, scanned, and corrected for accuracy in the same operation. This is a great time-saver for making finely tuned adjustments when changing out media from one application to the next. The user can simply walk away while the printer does the work.

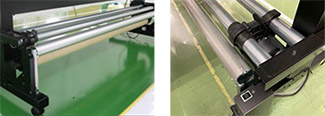

Adjustable Take-Up Reel

The TU4-64 automatic take-up system is designed to accommodate a variety of media widths. Tension mode provides incredible media stability when printing roll-to-roll applications.

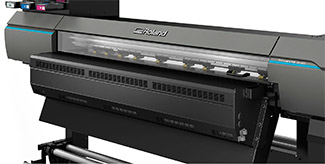

AP-640 Drying Module

Designed specifically for TA Resin Inks, the AP-640 includes a robust drying system. This system has been engineered for simple installation, and heat settings are easy to control using the 7-inch LCD touchscreen. Profiles downloaded from the Roland Profile Center have predefined dryer settings for ease of use, while also allowing real-time control for any adjustments required due to environmental conditions. The system reduces post-production time and improves overall productivity, allowing the user to deliver applications to the market without delay.

TrueVIS TA Resin Ink

TrueVIS TA Resin Ink is formulated to produce the rich, vibrant, natural color that the TrueVIS Series is known for. The new resin ink system uses CMYK in combination with “TA-OP” optimizer, allowing for high-quality prints on a wide variety of substrates with production-level throughput.

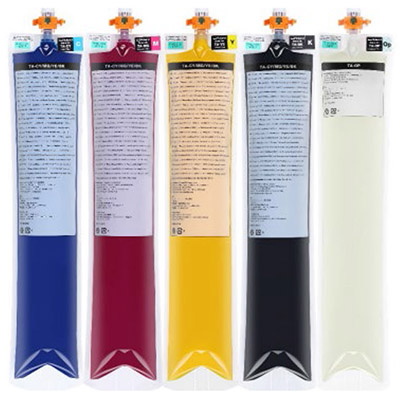

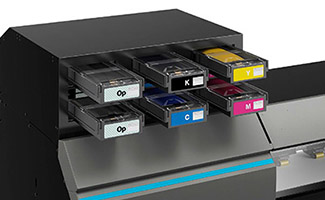

700ml Ink Pouches

In addition to production-level throughput, TA inks are cured, dry and ready for application immediately after printing. With prints ready to apply directly off the printer, turnaround time can be reduced dramatically. Users will save time on post-production activity like outgassing prior to lamination.

High-capacity 700 ml pouches are perfect for high-volume applications such as banners, interior décor, and commercial vehicle wraps.
