Discover the Aries 124, the ultimate 2-in-1 printing and laminating solution. With impressive speeds of up to 60 sq. ft./hour and advanced maintenance features like the White Ink Management System and automatic cleaning, this all-in-one printer eliminates the need for additional lamination machines and allows you to create ready-to-use stickers effortlessly. Experience seamless media management with automated pressure adjustments, plus easy, intuitive access for any needed repairs.
Exclusively crafted for UV direct-to-film printing, the DTF Station's Aries 113 UV is equipped with dual XP600 printheads, and guided by cutting-edge Hosonsoft technology. This innovation enables you to transfer top-tier prints even onto irregular, non-flat surfaces without breaking the bank. The self-cleaning system minimizes downtime, while its White Ink Management System and assortment of sensors help ensure you can worry less and print more.
Speed:
Speed: 25-60 sq. ft./hour (depending on resolution)

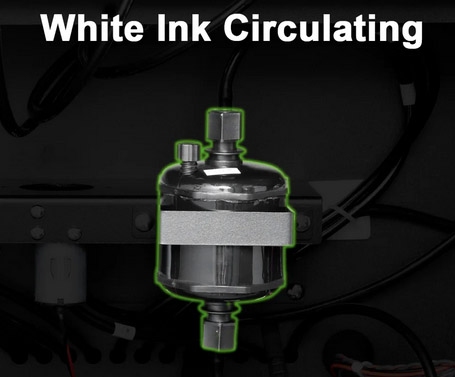

White Ink Management System (WIMS): timed white ink stirring system to circulate and maintain white ink inside the printer
Semi-Auto Laminator Pressure Control: Even pressure for bonding A and B films with a single lever

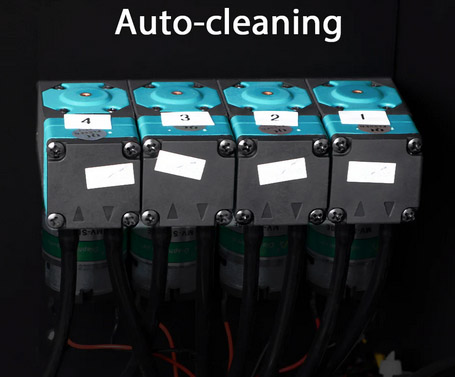

Passive Auto-Cleaning: when the printer is left on, it will automatically maintain and clean the printhead every 4 hours
Active Auto-Cleaning: during set intervals (even during printing), the printer can stop to clean the printhead

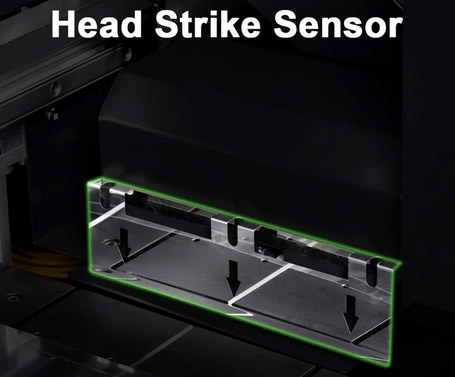

Head Strike Sensor: helps prevent damage to the printhead

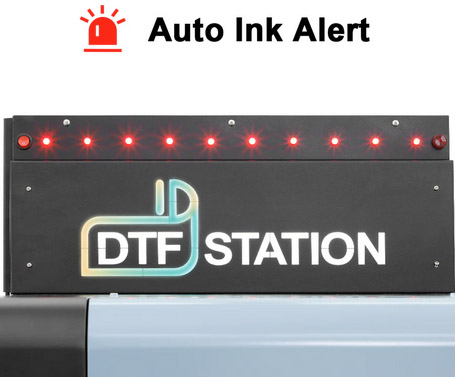

Auto Ink Alert System: informs the user when ink is running low
Media Take-Up System: Automatically winds all the prints in a roll
| Aries 124 | |
|---|---|
| Print Heads | 4x Epson i1600-U1 |
| Connectivity | Ethernet |
| Software | DigiRIP |
| Printing Width | 23.62 inches |
| Printing Speed | Up to 60 Sq Ft/Hour |
| Machine Weight | 551 lbs |
| Shipping weight | 716 lbs |
| Dimensions | Printer - 74" x 38" x 63" Crate 79" x 45" x 34" |
| Daily Output | Daily Output (based on 4”x4” design size, 8 hours per day): 1000-1500 Pcs |
| Power Requirements | 1900W (800W from cooling system), 110V, 17.27A |
Aries Operation
