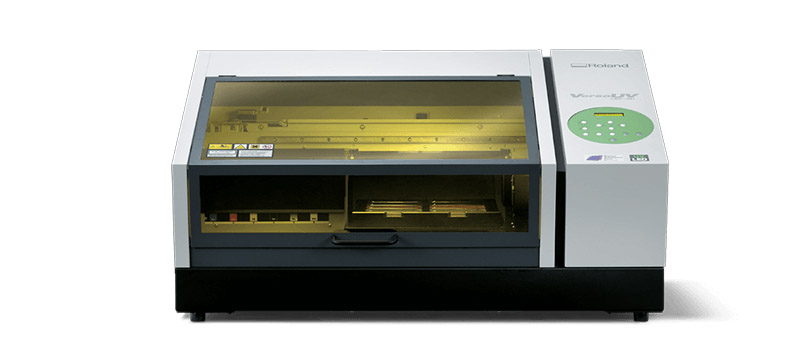

VersaUV LEF12i at a glance:

Compact machine for quick personalization of specialty items
Print directly on materials up to 3.94” thick and 12” x 13” wide, including golf balls, keyrings, smart phone covers, etc.
Customize hundreds of objects and open new revenue streams
ECO-UV ink in CMYK plus Gloss and White for unique effects
Automatic height sensor for fast set-up

The Wonder of UV Ink

Available in CMYK, White and Gloss, ECO-UV ink offers the following benefits:

Clean and efficient 220ml cartridges
Instantly dries to produce mess-free, wide color gamut results
Ink prints around curves and irregular surfaces without cracking
Produces durable indoor graphics with scratch and chemical resistance
Outdoor graphics last from six months to two years when Gloss coat is applied

Energy Efficient UV Lamps

The LEF-12i feature energy-saving LED lamps that last up to ten times longer than conventional UV lamps. These can be instantly switched on and off for a true on-demand operation that doesn’t require a long warm-up time. In addition, the LEF has an automatic low-power mode that is switched on when not used after an extended period..

Mist filters for clean & clear printing

To ensure optimum print quality when printing around curves, mist filters have been added to the LEF-12i to collect the residual ink-mist when printing off the edge or curve of an item. This reduces overspray and stops ink from settling on internal parts. Filters are designed to be easily replaceable by the end user.

Orange and Green options for added vibrancy and color accuracy

Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.

Expand your Color Gamut with "True Rich Color 2"

Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.

Model		VersaUV LEF-12i
Printing method		Piezo ink-jet method
Acceptable media	Width	Maximum 12.2 inches (310mm)
	Length	Maximum 13.2 inches (335mm)
	Thickness	Maximum 3.94 inches (100mm)
	Weight	Maximum 11 lbs (5Kg)
Printing Width		Maximum 12 inches (305mm)
Printing Length		Maximum 11 inches (280mm)
Ink cartridges	Type	ECO-UV 220ml cartridge
Ink cartridges	Colors	Six colors CMYK, White, Gloss
Ink-Curing Unit		Built-in UV-LED lamp
Print Resolution (dpi)		Maximum 1440 dpi
Distance accuracy (when printing) *1		Error of less than ±0.3% distance ±0.3mm, whichever is greater
Connectivity		Ethernet (10Base-T/100Base-TX, automatic switching)
Power-saving function		Automatic sleep feature
Power requirements		AC 100 to 240V ±10%, 1.8A (50/60Hz)
Power Consumption	During operation	Approximately 149W
Power Consumption	During standby	Approximately 13W
Acoustic noise level	During operation	60 dB (A) or less
Acoustic noise level	During standby	49 dB (A) or less
Dimensions	Width	39.3 inches (998 mm)
	Depth	34.2 inches (867 mm)
	Height	21.5 inches (546mm)
Weight		187.4 lb (85kg)
Environment	During Operation *2	Temperature:20 to 32°C or 68 to 90°F (22° or 72°F or higher is recommended) Humidity: 20 to 80% RH (no condensation)
Environment	Not operating	Temperature: 5 to 40°C or 41 to 104°F Humidity: 20 to 80% RH (no condensation)
